Thanks for sharing. Leave a set of keys someplace I can find them
Hank
BlueRidge said
Feb 28, 2017
waxman18324 wrote:
Thanks for sharing. Leave a set of keys someplace I can find them
Hank
I thought I gave you a set in York!
Philip McCullough said
Feb 28, 2017
Looks great! Thanks for the tour and information on how your set-up works!
Maverick Contracting said
Feb 28, 2017
Where's the foozeball table and tiki bar?
HHandywork said
Feb 28, 2017
Hello Gentleman
What an impressive build setup! Gee I got long way to go, to get where you guys are. What a great deal of helpful information here. I may not get to work at all, if I were to try to read all at once. I'm should be getting some tax return back and plan to get a computer that doesn't give so much grief. I'll be working on getting a web site together. Also I will be buying some equipment to run, from my small operation [PICKUP]. Just taking baby steps, up here in Maine. Although the winter has been mild, and cabin fever has set in. Spring is just around the corner!
Thank You Guys
BlueRidge said
Feb 28, 2017
HHandywork wrote:
Hello Gentleman
What an impressive build setup! Gee I got long way to go, to get where you guys are. What a great deal of helpful information here. I may not get to work at all, if I were to try to read all at once. I'm should be getting some tax return back and plan to get a computer that doesn't give so much grief. I'll be working on getting a web site together. Also I will be buying some equipment to run, from my small operation [PICKUP]. Just taking baby steps, up here in Maine. Although the winter has been mild, and cabin fever has set in. Spring is just around the corner!
Thank You Guys
Tayib, All of us started where you are. We are here to help. Search and if you are unsure ask questions.
As to your computer, there are people here who can help you with a new one.
Brett
PowerShine Property Services said
Feb 28, 2017
Thanks for the tour, looks good. Ive got a long way to go also. You use the booster pump as your main pump? What kind of hose reals do you have holding your chem and fresh water hoses? I have 200 ft of 5/8 hose I have to find a hose real for.
BlueRidge said
Mar 1, 2017
PowerShine Property Services wrote:
Thanks for the tour, looks good. Ive got a long way to go also. You use the booster pump as your main pump? What kind of hose reals do you have holding your chem and fresh water hoses? I have 200 ft of 5/8 hose I have to find a hose real for.

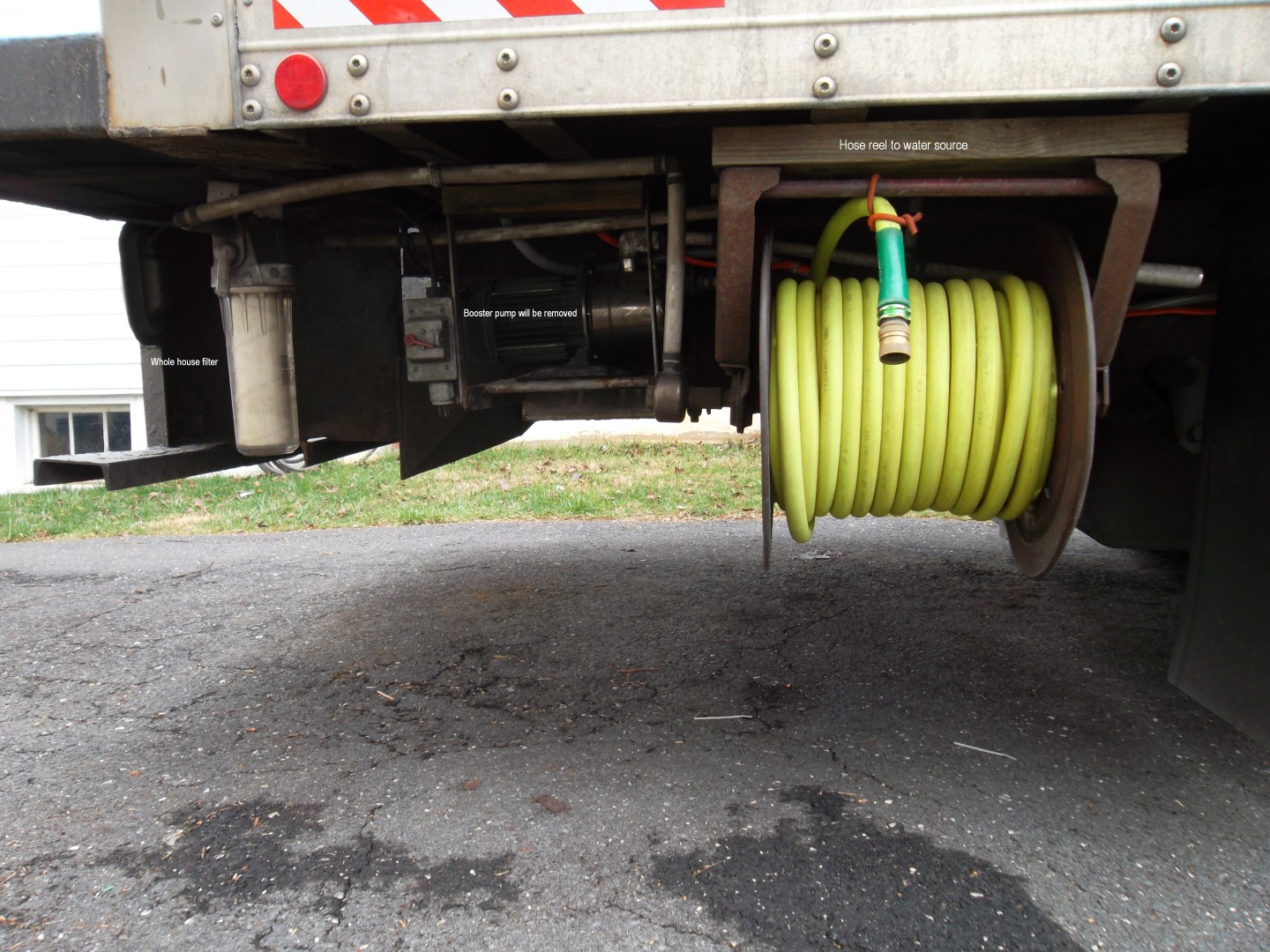

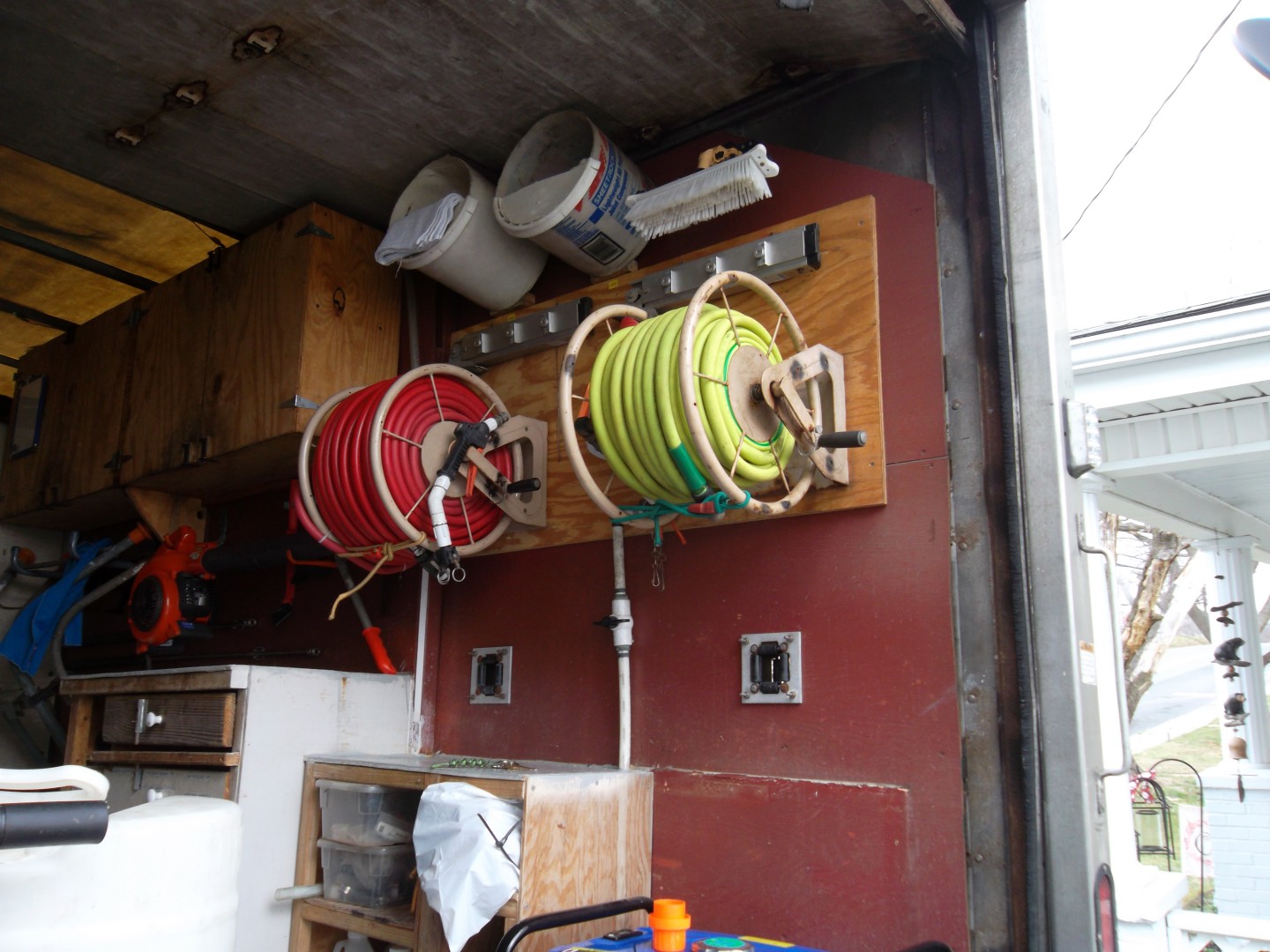

I have two of these hose reels and will order two more. I have replaced one manifold in seven years. No need for more than 1/2" for spraying and 5/8" for watering. Liberty Garden

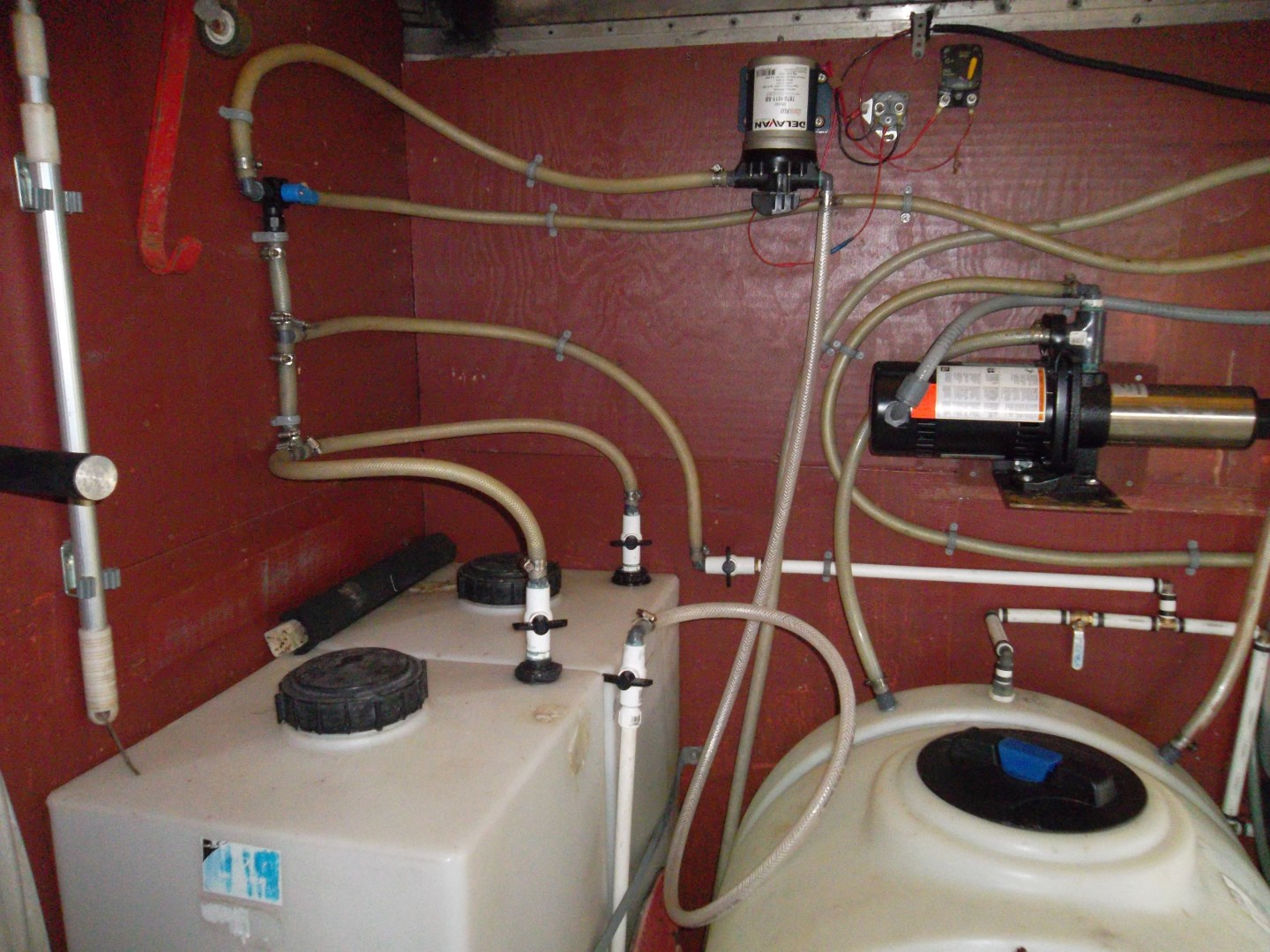

The booster is now our only roof cleaning pump. The 12v is only for transfer of SH to the down stream tank.
John Aloisio said
Mar 1, 2017
Looking good BreTt! Very nice and clean.
Art O said
Mar 1, 2017
BlueRidge wrote:
PowerShine Property Services wrote:
Thanks for the tour, looks good. Ive got a long way to go also. You use the booster pump as your main pump? What kind of hose reals do you have holding your chem and fresh water hoses? I have 200 ft of 5/8 hose I have to find a hose real for.
I have two of these hose reels and will order two more. I have replaced one manifold in seven years. No need for more than 1/2" for spraying and 5/8" for watering. Liberty Garden
The booster is now our only roof cleaning pump. The 12v is only for transfer of SH to the down stream tank.
I stumbled upon 6 of them. My son moved and when I went into the shed there were 6 Kodak chemical tanks. I asked his landlord and they became mine. It is so nice not to have to touch soap but maybe once every two weeks. They hold about four gallons due to the vent hole.
Brian C Jackson said
Mar 1, 2017
Brett that is one impressive build..
Philip McCullough said
Mar 1, 2017
Brett, I am very interested in the way that you plumbed your pressure relief....what size hose and fittings did you use? After experimenting with my pump today, I quickly discovered I need to have some type of pressure relief....
Thanks!
BlueRidge said
Mar 1, 2017

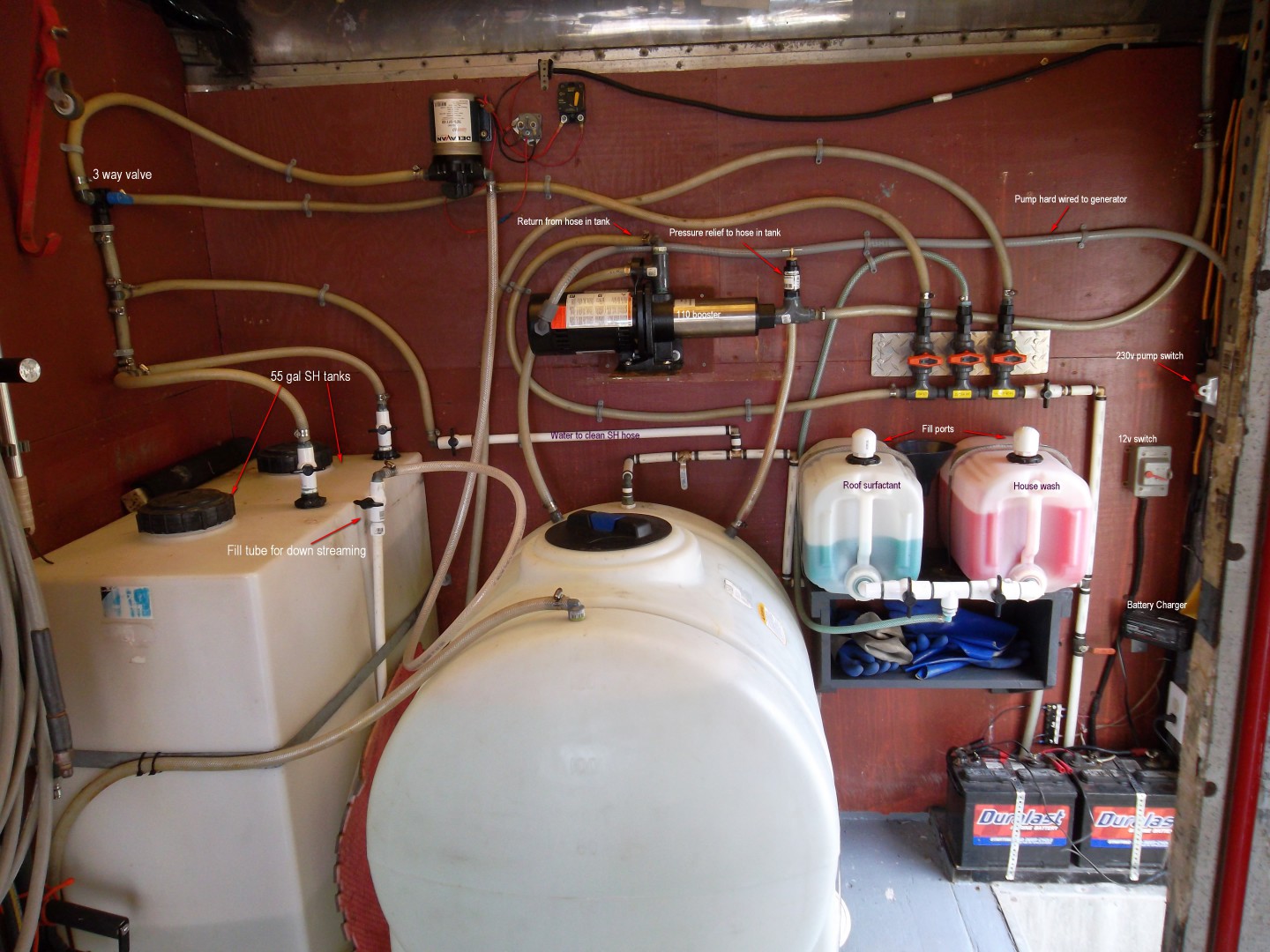

As promised. Pictures with descriptions, mainly for Hank to help him understand !
Brett, I am very interested in the way that you plumbed your pressure relief....what size hose and fittings did you use? After experimenting with my pump today, I quickly discovered I need to have some type of pressure relief....
Thanks!

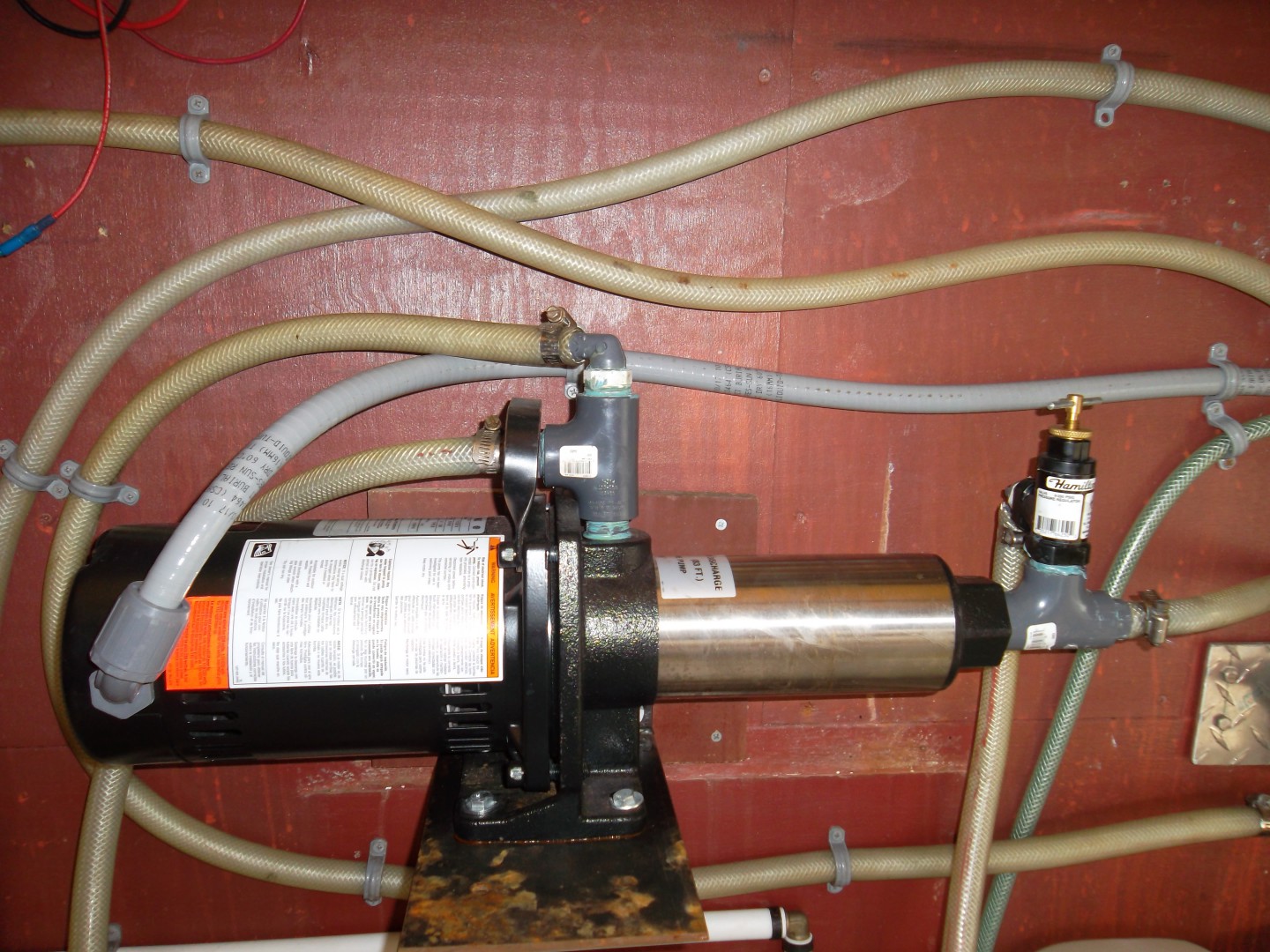

Thanks to Art for posting in the 110 booster pump post and my memory. When I realized I needed something it was on the pump the next day. I'll buy a spare because I'm sure the SH will kill them. Pressure regulating bypass valve
You will need 4 female 1/2" barbed fittings and 2 close 1/2" nipples. I plumbed everything except the soap with 5/8" poly braided. Drill two 1/2" holes in the top of the tank and screw the fittings together with the nipple. I didn't want to use hose clamps because I knew they would rust and one day and my buffer would be getting filled with juice. I forced two 3/4" crimp rings on the hose and forced the barb into the hose and crimped them. Now that both ends are crimped I installed them in the tank as I explained above. If this doesn't make sense give me a call.
Patriot Pro Clean said
Mar 1, 2017
Good stuff Brett! You have EVERYTHING in there!
Philip McCullough said
Mar 1, 2017
BlueRidge wrote:
Philip McCullough wrote:
Brett, I am very interested in the way that you plumbed your pressure relief....what size hose and fittings did you use? After experimenting with my pump today, I quickly discovered I need to have some type of pressure relief....
Thanks!
Thanks to Art for posting in the 110 booster pump post and my memory. When I realized I needed something it was on the pump the next day. I'll buy a spare because I'm sure the SH will kill them. Pressure regulating bypass valve
You will need 4 female 1/2" barbed fittings and 2 close 1/2" nipples. I plumbed everything except the soap with 5/8" poly braided. Drill two 1/2" holes in the top of the tank and screw the fittings together with the nipple. I didn't want to use hose clamps because I knew they would rust and one day and my buffer would be getting filled with juice. I forced two 3/4" crimp rings on the hose and forced the barb into the hose and crimped them. Now that both ends are crimped I installed them in the tank as I explained above. If this doesn't make sense give me a call.
Makes sense, I appreciate the help!
Roof Stain Removers said
Mar 1, 2017
Well planned and executed. Very impressive.
Diamond Roof Cleaning said
Mar 2, 2017
Looks good brett. It will work out real nice for you.

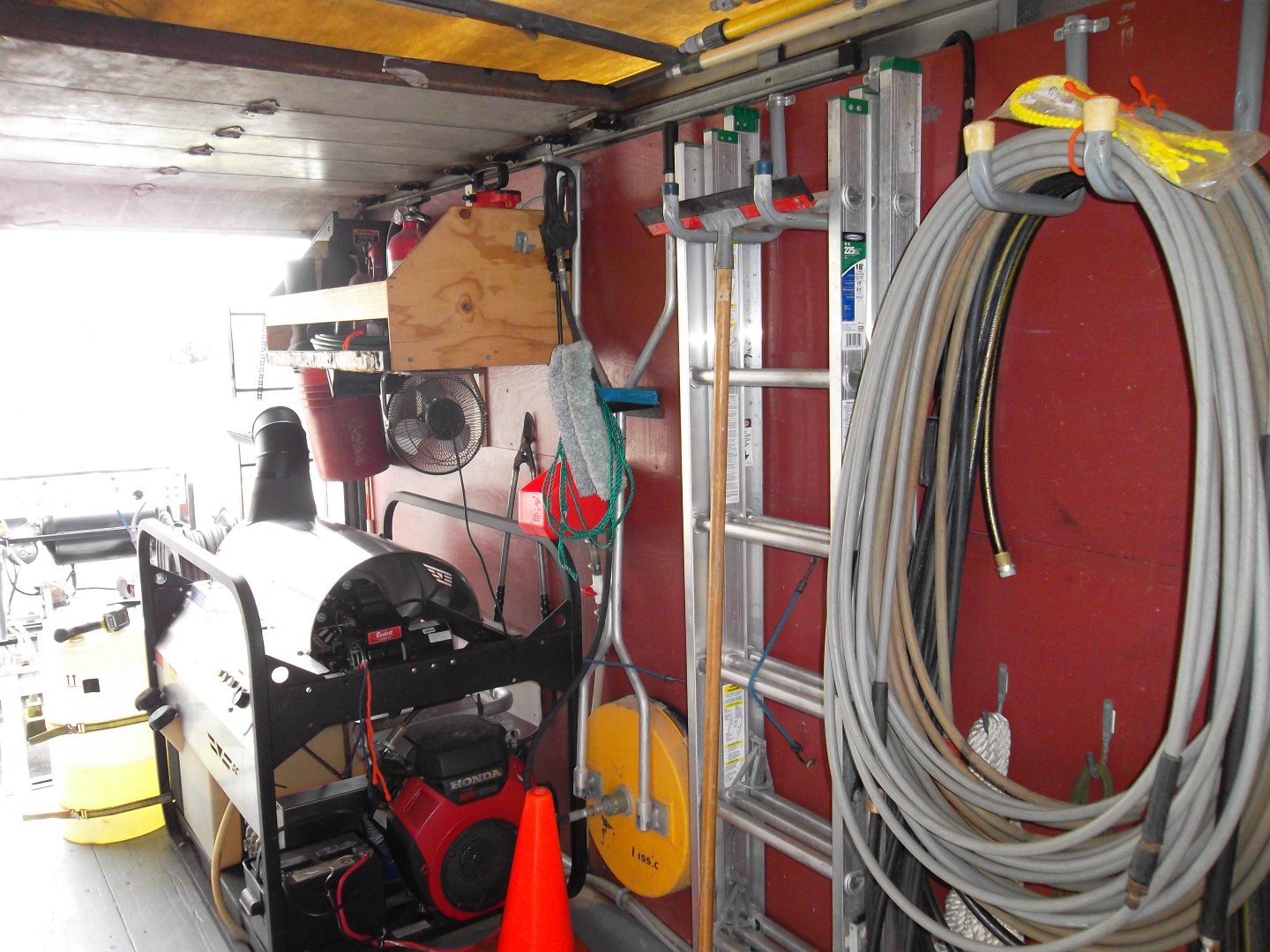

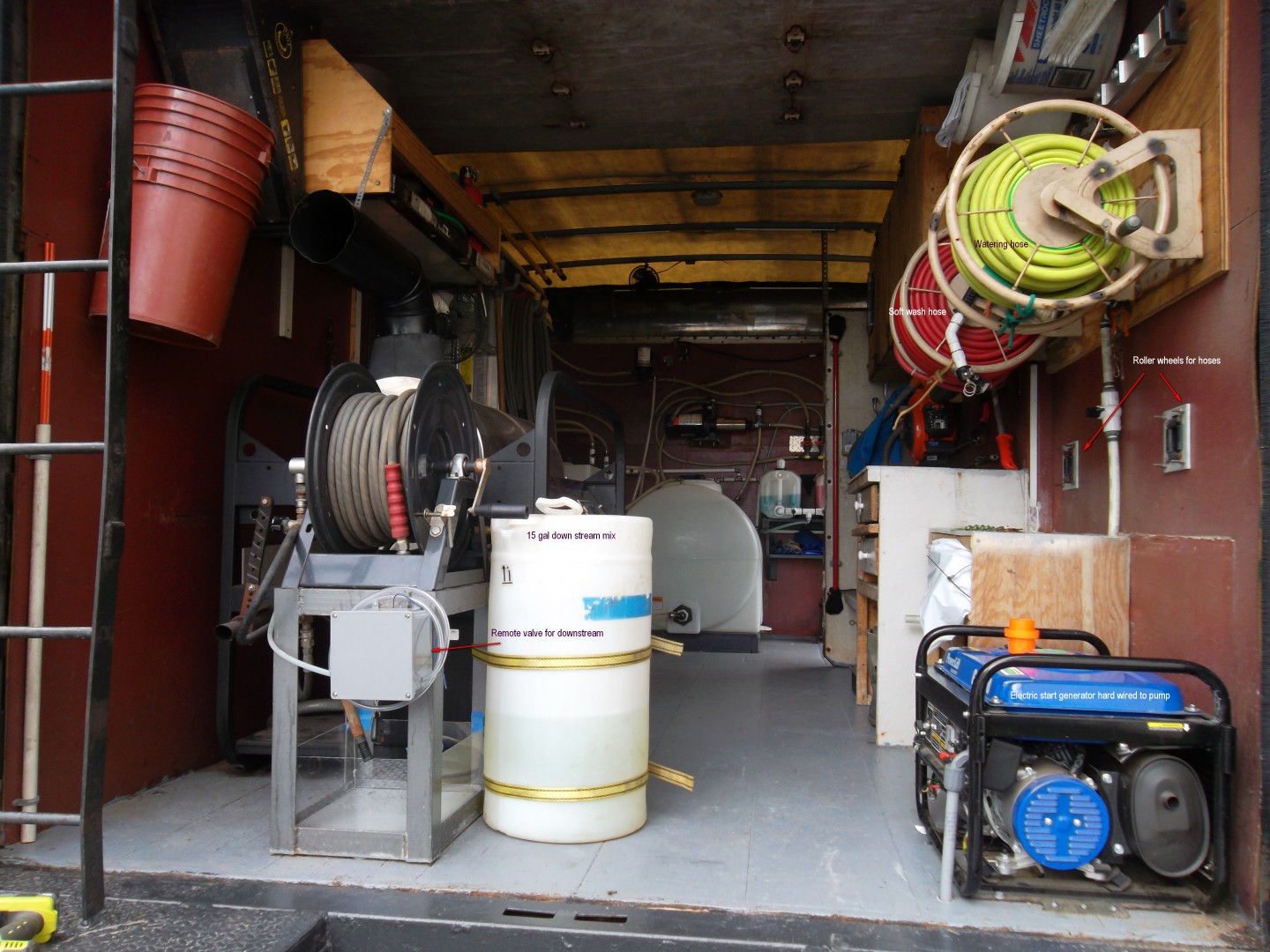

A look at what I have completed over the winter. I'll take pictures and mark a much as I can.
